Oil spray booth

首 頁 >> Spraying Equipment >> Oil spray booth

Oil spray booth

The oil spray booth use of mechanical oil as a purification medium, the application of paint mist particles impulse washing, gravity inertial separation, gas-liquid phase infusion, air curtain isolation and other technologies developed by the new environmentally friendly paint mist treatment equipment.

Oil spray booth

oil spray booth

簡介

The oil spray booth is a series of wet paint spray treatment equipment of our company. It is widely used in the painting of medium and small parts of airplanes, machinery, locomotives, light industry, electronics, instrumentation, hardware and other industries. It is a paint painting operation. , paint mist treatment, organic benzene waste gas purification and dissolution of high-efficiency energy-saving equipment; mainly from the chamber, oil storage tank, oil curtain system, oil circulation system, paint mist treatment system, exhaust system, lighting system, exhaust gas concentration Detection system (optional), control system and other components.

The oil spray booth use of mechanical oil as a purification medium, the application of paint mist particles impulse washing, gravity inertial separation, gas-liquid phase infusion, air curtain isolation and other technologies developed by the new environmentally friendly paint mist treatment equipment.

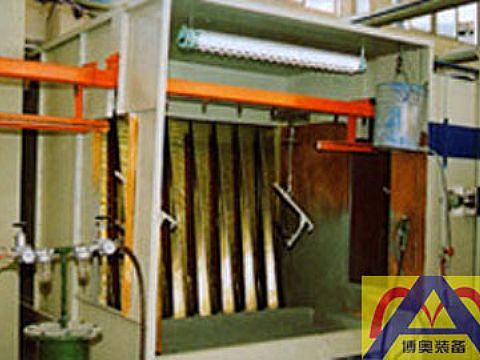

油淋式噴漆室現場圖

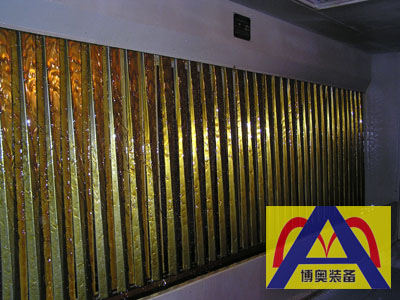

油淋式噴漆室現場圖

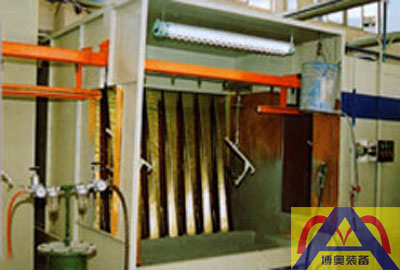

油淋式噴漆室現場圖
油淋式噴漆室現場圖

技術特點

1. The paint mist purification efficiency is high - the oil spray paint booth uses the Venturi paint mist filter; according to the Venturi airflow effect, the overspray paint mist and the purification medium are fully mixed, impulse atomization, paint mist Capture and treatment removal rate ≥98%; VOC emissions fully comply with relevant national environmental standards;

2. Equipment energy saving, low operating costs, no waste water discharge, no secondary pollution, purification medium can be recycled without discharge; monthly water saving 10-20 tons;

3, The equipment is simple to operate, only need to regularly maintain and remove paint residue;

4. The equipment uses mechanical oil as the purification medium and never rusts; the equipment has a long service life;

5. The chamber body is designed and manufactured by modular combination, which is ergonomic. It can be equipped with appropriate specifications according to the actual needs of customers, and the installation site of the chamber is very suitable for installation and use in various plant conditions;

6. The operation room can be fixed and moved telescopic according to the size of the workpiece, suitable for medium-sized workpiece painting or small workpiece concentrated painting.

No.

Model

Dimensions
(mm)
(L x W x H)

Operating space
(mm)
(L x W x H)

Air volume
(m3/h)

discharge flange
(mm)

Illumination
(W)

Water tank
Volume
(M3)

1

BAO-10

1000x1800x2570

1000x600x1850

4000-5330

530x530x1

20

0.5

2

BAO-15

1600x1800x2820

1500x600x1850

6000-8000

530x530x1

60

0.7

3

BAO-20

2100x2100x2820

2000x900x1850

8000-10700

530x530x2

60

0.8

4

BAO-26

2600x2100x2820

2500x900x1850

10000-13320

530x530x2

80

1.2

5

BAO-30

3100x2100x2820

3000x900x1850

12000-16000

630x630x2

120

1.3

6

BAO-38

3800x2100x2820

3700x900x1850

14800-19700

630x630x2

120

1.6

7

BAO-45

4600x2400x2820

4500x1200x2100

20400-27000

800x800x2

160

2.0

8

BAO-50

5100x2400x2820

5000x1200x2100

22700-30000

800x800x2

160

2.2

9

BAO-80

8100x2400x2820

8000x1200x2100

36300-48000

630x630x4

240

3.5

The above is the standard product of our company. Its configuration is the basic configuration of our company. Our company can design and produce various non-standard products according to user requirements, and its configuration can be negotiated separately.
